| Place of Origin |
Guangdong China (Mainland) |
| Brand Name |
GTW |
| Model Number |
ZJ812B |

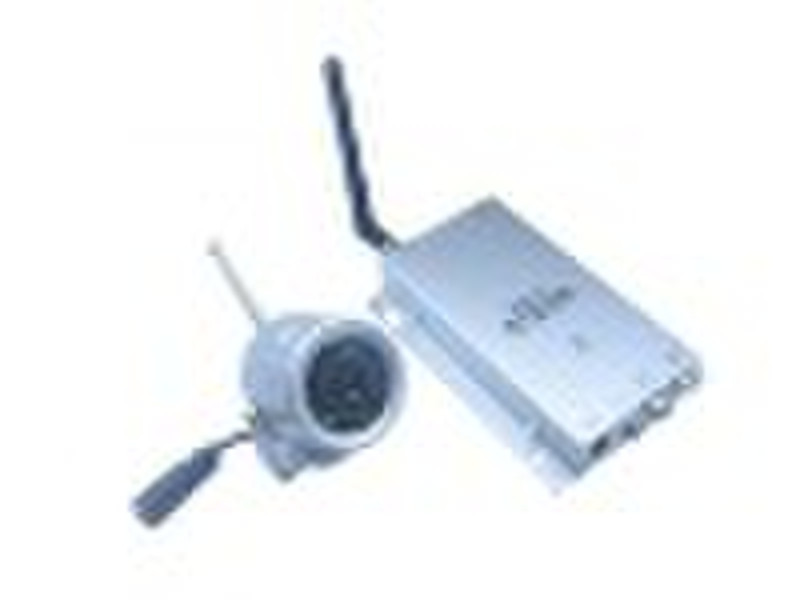

Details ofNight Vision CCTV Camera *High quality Color CMOS sensor for crisp, clear images * Built-in microphone for audio monitoring * 4-channel operation allows multiple (1-4) camera systems (optional) * Long operation range: up to 100 m clear line of sight or 30 m throug walls/ceilings * Camera with AC or Battery operated for portability * Compact, Lightweight and Super Mini size * Swivel bracket included for wall /ceiling mounting * This receiver should push the channel select button to choose channel Camera Specification -Frequency: 1CH:2414MHz,2CH:2432MHz,3CH:2450MHz,4CH:2468MHz -Imaging Sensor: 1/3 inch OMNIVISION Color CMOS -11 infrared LED with 5-8m nigh vision range -Horizontal Resolution: 380 TV Line -CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC) -View Angles: 62degrees -Minimum Illumination: 0Lux -Gain Control: Automatic -Transmission Power: 10mW -Consumption Current: 180 MA MAX -Modulation Mode: FM -Bandwidth: 18M -Operating Range: 30m/100m (Obstructed / Unobstructed) -Power: DC 8V Battery -Operating Temperature: -10oC +40oC -Operating Humidity: 85%RH -Dimension(WxLxH):44x44x56 mm -Weight: 200 g Receiver Specification -Frequency: ISM 2,400 - 2,483MHz -Antenna: Omni-directional antenna -Channel: 1-4 (Flip-type switch) -Intermediate Frequency: 480MHz -Frequency Stabilization: +/- 100KHz -Demodulation Mode: FM -Receiving Sensitivity: <-85dBm -Power:DC 9V/12V -Operating Temperature: -10oC +40oC -Operating Humidity: 85%RH -Dimension(WxLxH): 110x80x20 mm -Weight: 130g Standard Package Content -2.4GHz Wireless Color Camera with Built-in Microphone -2.4GHz Wireless Flip-type 4-channel AV Receiver -Antenna for Receiver -AV cable -8V Power Adaptor for Camera -9V Power Adaptor for Receiver -9V battery buckle -Swivel Bracket for Camera Packing Details: -Gift Box Size:19.5x18x8cm -Carton Box Size:41.5x37.5x42cm -1 gift box:1 Unit -1 Carton Box:20 sets -Gross Weight:13kg/Carton -Net Weight:12kg/Carton -Weight:0.6kg/Carton
